Electronic detector of air flow

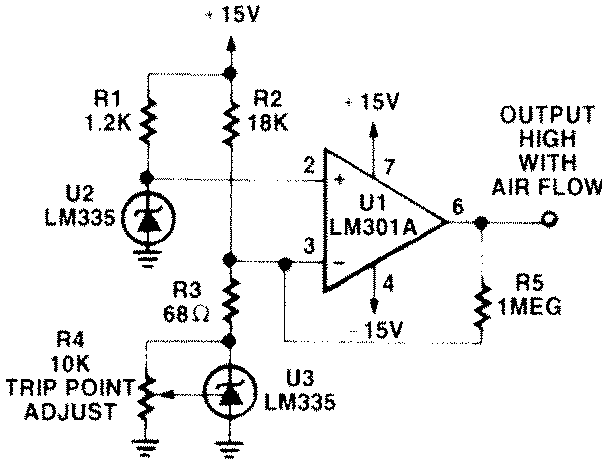

Electronic air flow detector circuit:
Components list | |
---|---|
R1 | 1.2kΩ |
R2 | 18kΩ |
R3 | 68Ω |
R4 | 10kΩ |
R5 | 1MΩ |
U1 | LM301A |
U2, U3 | LM335 |
Self heating is used to detect air flow.
