Optical toggle switch using a single Chip

Electronic Schematics > Motor, light and power control > Optical toggle switch using a single Chip

---

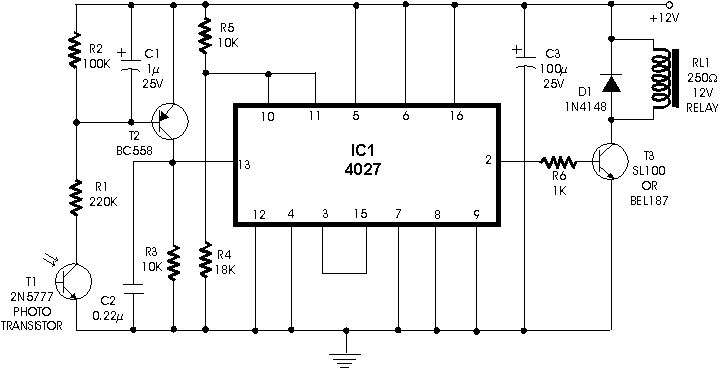

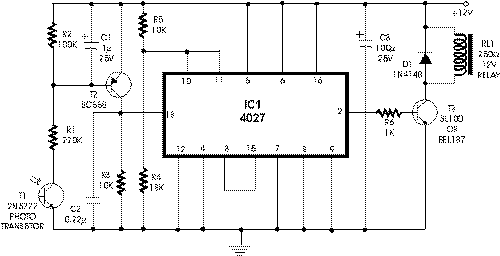

Using dual flip-flop IC CD4027 employ a 555 based monostable circuit to supply input clock pulses. The circuit described here obviates this requirement. One of the two flip-flops within IC CD4027 itself acts as square wave shaper.

Title: Optical toggle switch using a single Chip
electronic circuit
Source: www.electronic-circuits-diagrams.com
Published on: 2005-02-01
Reads: 1310
Print version:
