VHF Video Transmitter

Electronic Schematics > RF circuit > VHF Video Transmitter

---

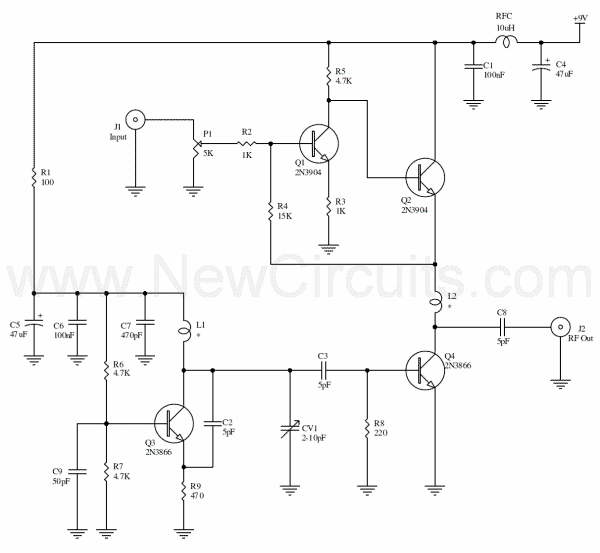

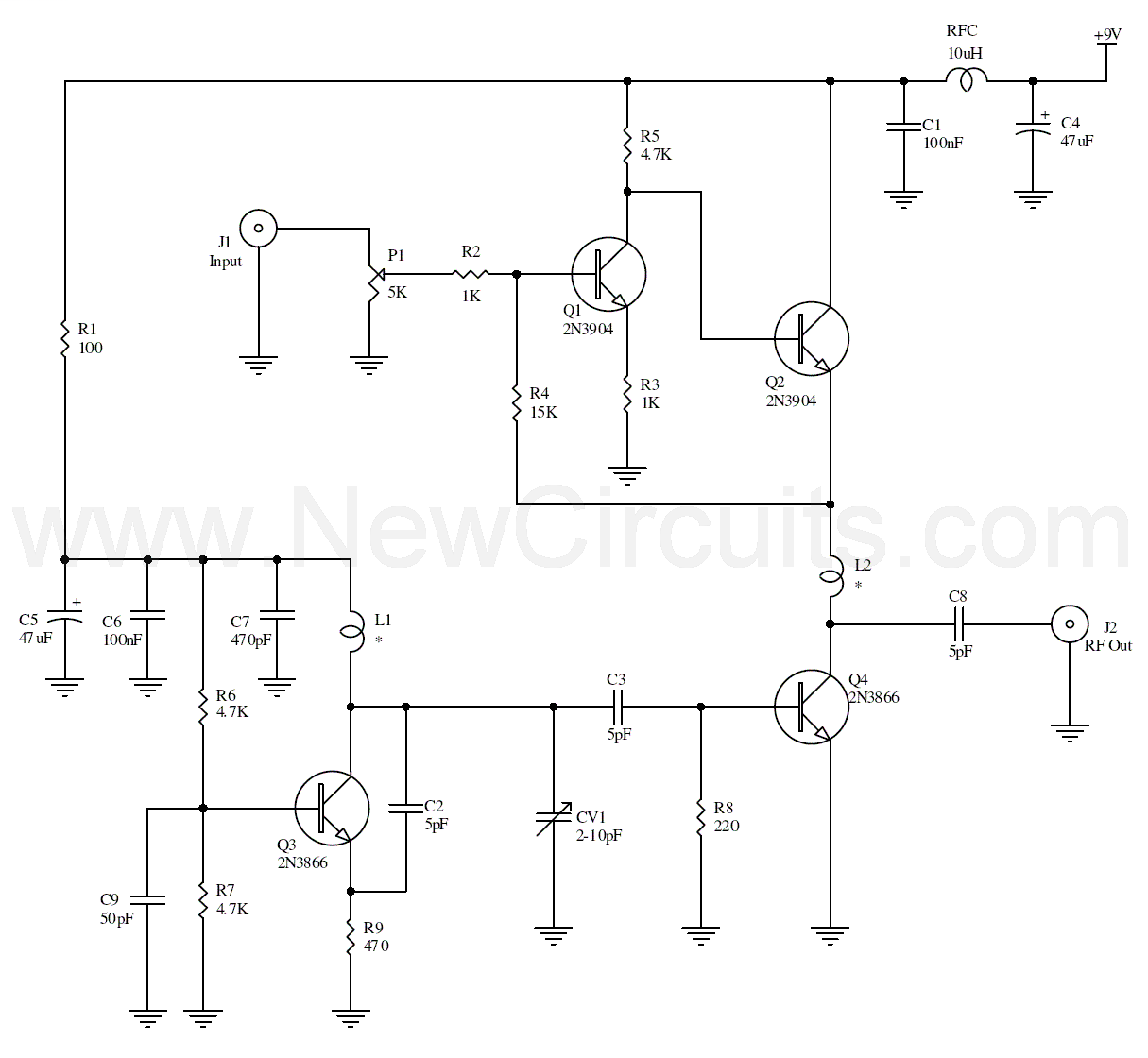

This circuit is a powerful video sender in VHF band. The modulator section is designed to operate on either channels 7 to 13 or 14 to 29. For channels 7 to 13, L1 and L2 are 3 turns of #22 wire wound on a 3/16 inch form. For channels 14 to 29, L1 and L2 are 2 turns of #22 wire wound on a 3/16 inch form. Video signal is modulated as AM.

Title: VHF Video Transmitter
electronic circuit
Source: unknown
Published on: 2005-08-27
Reads: 3374
