Ringing Phone Light Flasher
I have received several emails asking how to connect up some lights so that when the phone rings, they flash. This is very useful in a situation were there is lots of noise and it is impossable to hear the phone, such as a workshop. Here is such a device. The ring detect part of this circuit came from http://www.hut.fi/Misc/Electronics/circuits/telephone_ringer.html.

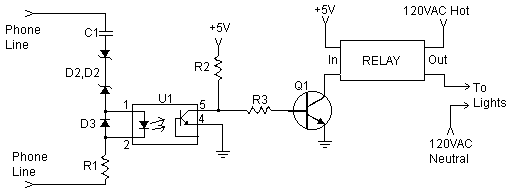

Schematic
Parts:
| Part | Total Qty. | Description | Substitutions |
| C1 | 1 | 0.47uF 250V Capacitor | |
| R1, R2 | 2 | 10K 1/4 W Resistor | |
| R3 | 1 | 1K 1/4W Resistor | |
| D1, D2 | 2 | 20V 1/4W Zener Diode | |
| D3 | 1 | 1N4148 Diode | |
| Q1 | 1 | 2N3904 NPN Transistor | 2N2222 |
| U1 | 1 | 4N27 Opto Isolator | |
| RELAY | 1 | Solid State Or Regular Relay (See Notes) | |
| MISC | 1 | Case, Wire, Board |
Notes:
1. You may need to use a lower voltage zener for D1 and D2.
2. You can use a regular relay instead of a solid state relay, but the arcing accross the contacts may destroy it pretty quickly.
3. Be very sure that you have not accidentally connected 120V to the phone line when building and installing this circuit.
