Economy radar detector
Electronic Schematics > Miscellaneous > Economy radar detector

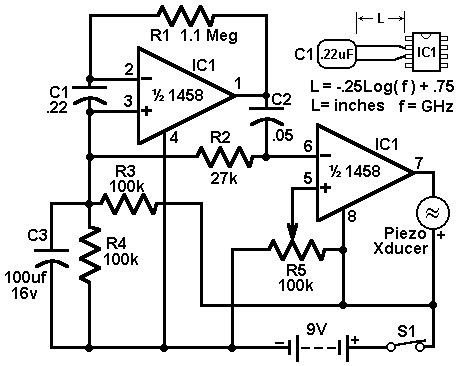

This circuit uses a 1458 dual op-amp to form a radar detector. C1 is the detector of the radar signal. The first op-amp forms a current-to-voltage converter and the second op-amp buffers the output to drive the piezo transducer. R5 sets the switching threshold of the second op-amp; normally it is adjusted so that the circuit barely triggers on background noise, then it's backed off a bit. The response of the circuit may be tuned by adjusting the length of the leads on C1. For typical road-radar systems, the input capacitor's leads should be about 0.5 to 0.6 inches long.

Title: Economy radar detector
electronic circuit
Source: www.electronics-lab.com
Published on: 2005-02-10
Reads: 1659
