Low impedance microphone amplifier
Description
The circuit is a microphone amplifier for use with low impedance (~200 ohm) microphones. It will work with stabilized voltages between 6-30VDC. If you don't build the impedance adapter part with T1, you get a micamp for higher impedance microphones. In this case, you should directly connect the signal to C7.

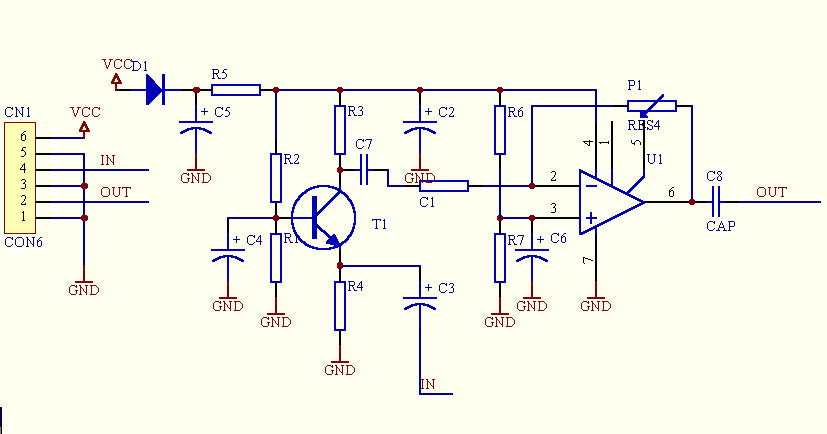

Schematic diagram

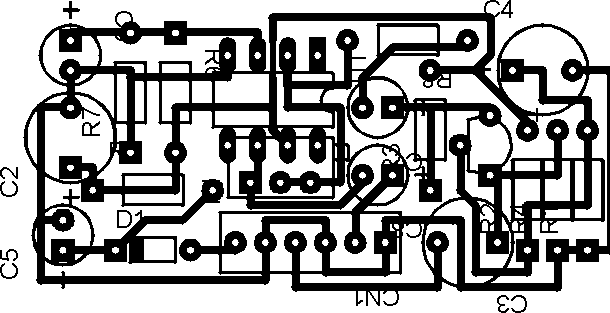

Layout of board

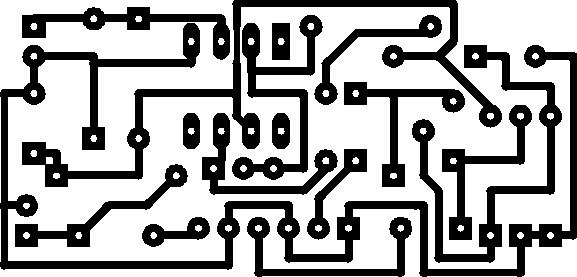

printed PCB
Parts
| R1=15k | C1= 3k9 | U1= TL081 | ||
| R2= 150k | C2= 100u | D1= 1N4148 | ||
| R3= 2k2 | C3= 22u | CN1= SIL6 | ||
| R4= 820 | C4= 4u7 | |||
| R6= 10k | C5= 470u | |||
| R7= 10k | C6= 10u | |||
| P1= 1M | C7= 100n | |||
| C8= 47u UNIPOLAR |
Title: Low impedance microphone amplifier
electronic circuit
Source: www.electronics-lab.com
Published on: 2005-02-01
Reads: 1049
Print version:
